D400 Pedestrian Mesh Grating (100mm)

Heavy Duty Ductile Iron Manufactured to BS:EN124 Class D400
mhc_icon_search_dark@1x
Enlarge
Product Details
For covers and gratings used in carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles.
mhc_icon_class_D400@1x
D400
40 Tonnes
mhc_icon_class_D400@1x
D400
40 Tonnes

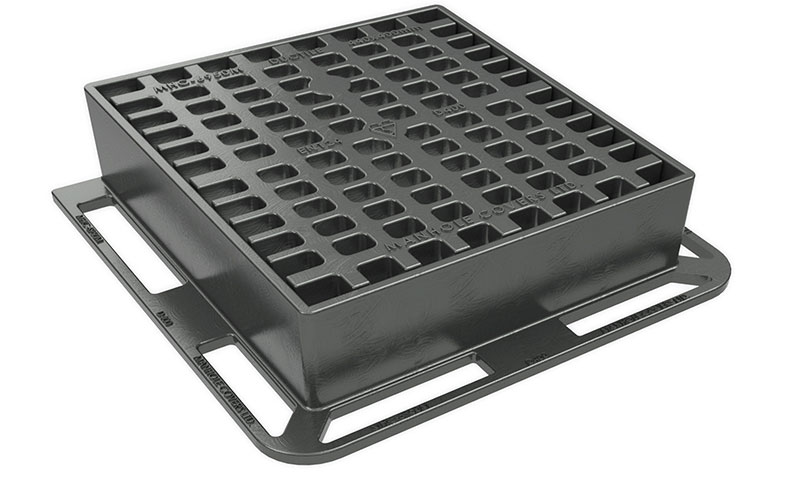

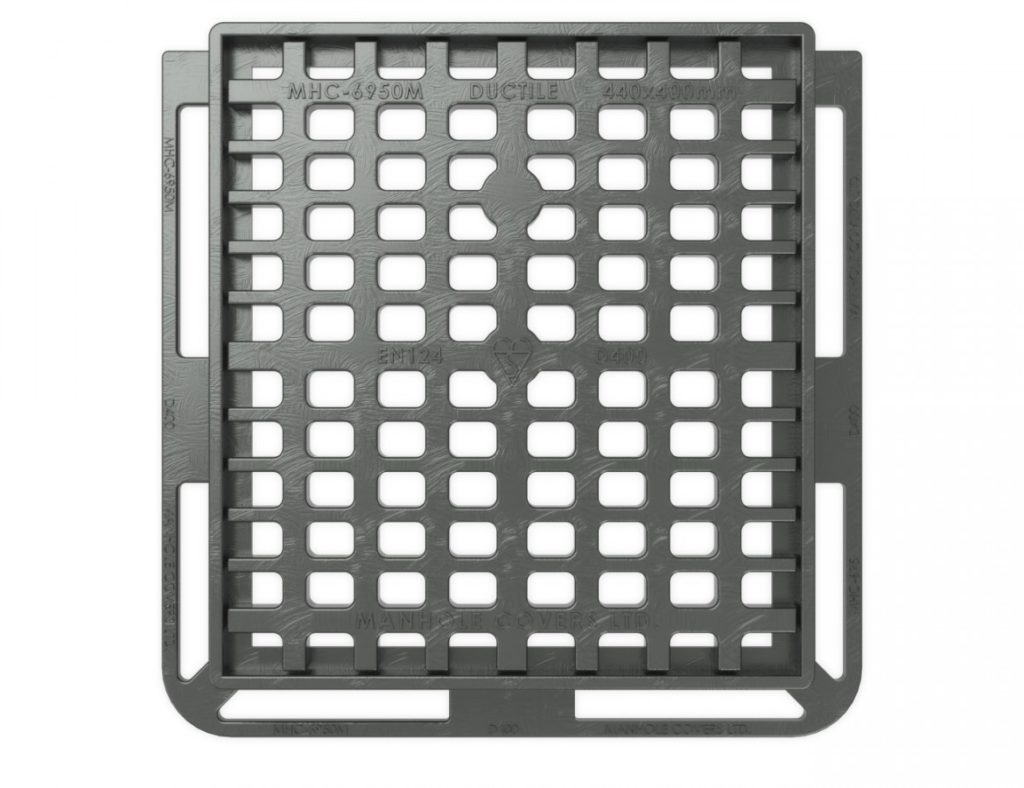

The D400 pedestrian mesh grating is made from heavy duty ductile iron and has a heel guard design for pedestrian areas.

Specification
  • mhc_icon_check@1x Manufactured to BS:EN124 Class D400
  • mhc_icon_check@1x 40 Tonne Safe Test Load
  • mhc_icon_check@1x Heel guard design for pedestrian areas
  • mhc_icon_check@1x Wedge seated non-rock design
  • mhc_icon_check@1x Reversible side hinged
  • mhc_icon_check@1x Anti-theft captive hinge
Available Sizes
Product code Clear Opening (mm) Over Frame (mm) Frame Depth (mm) Waterway (cm2)
MHC-6950M
420 x 420 570 x 500 100 750
Available Sizes
MHC-6950M
Clear Opening (mm) 420 x 420
Over Frame (mm) 570 x 500
Frame Depth (mm) 100
Waterway (cm2) 750
Any questions, contact our expert team on 01296 668850
