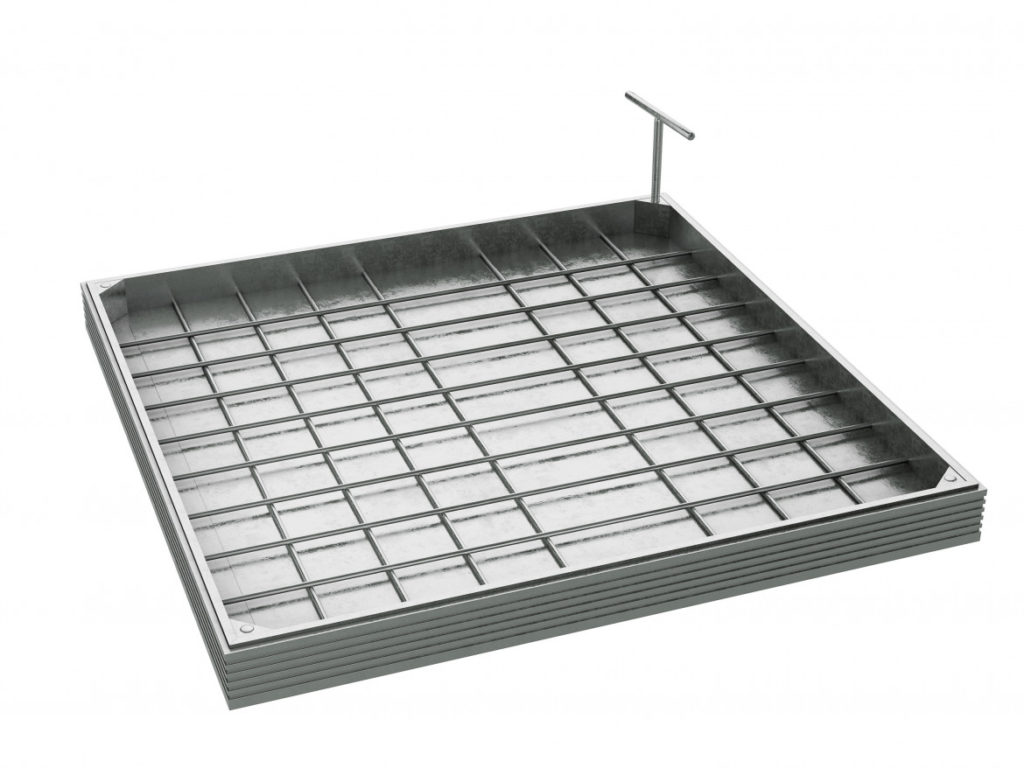

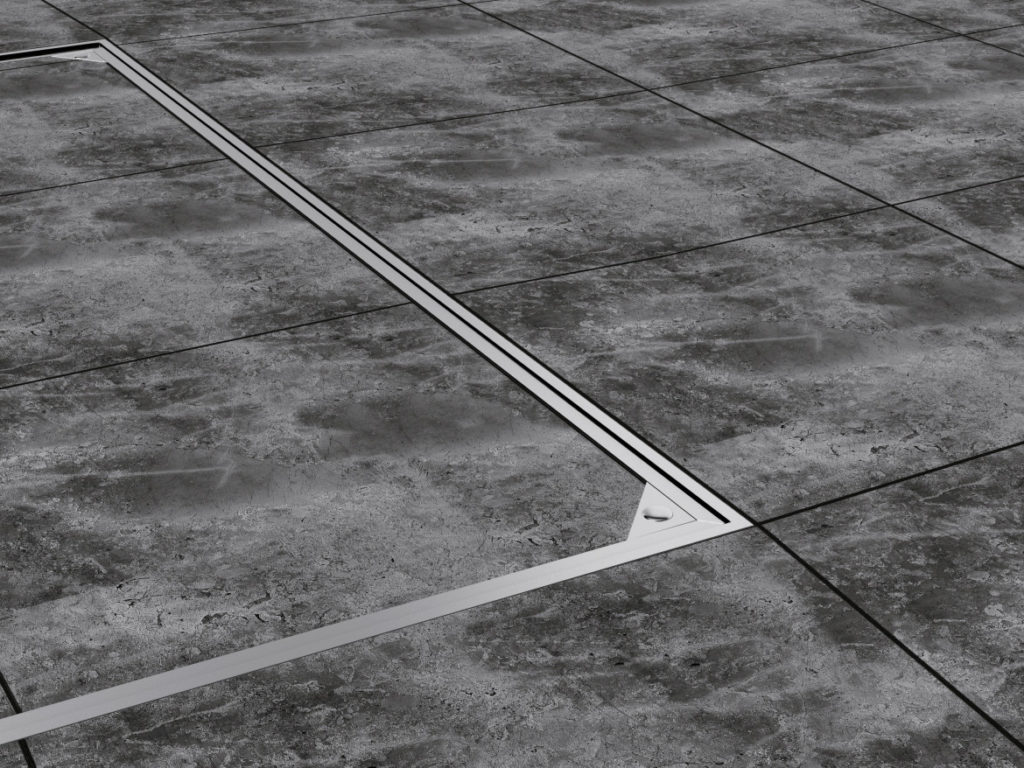

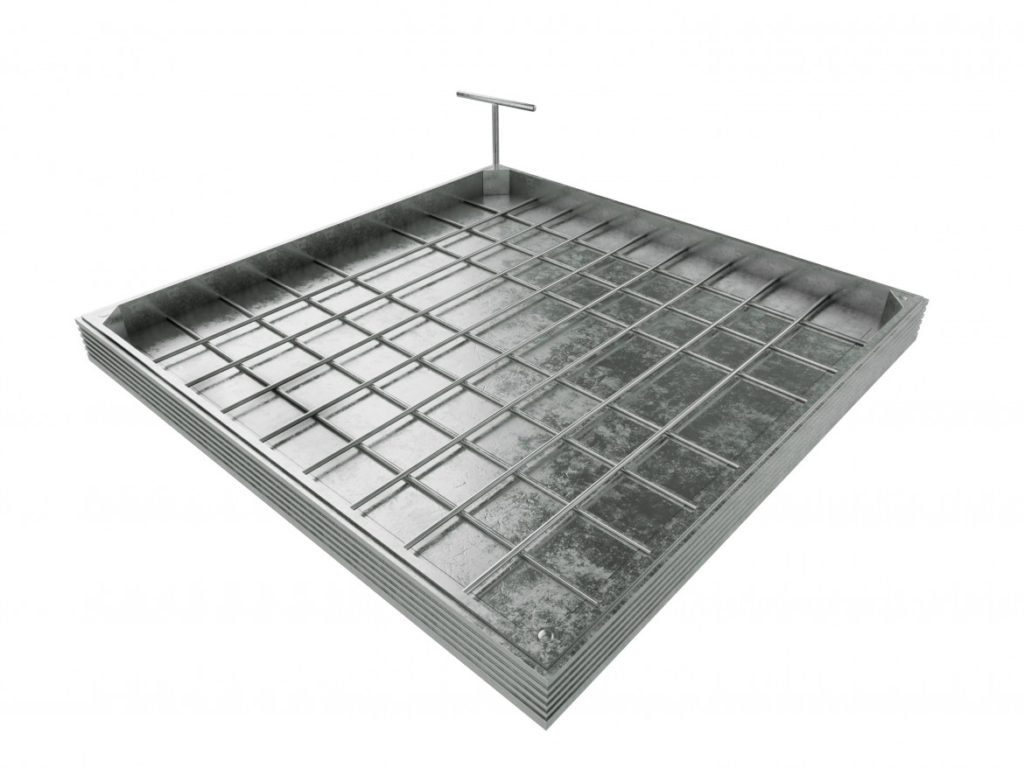

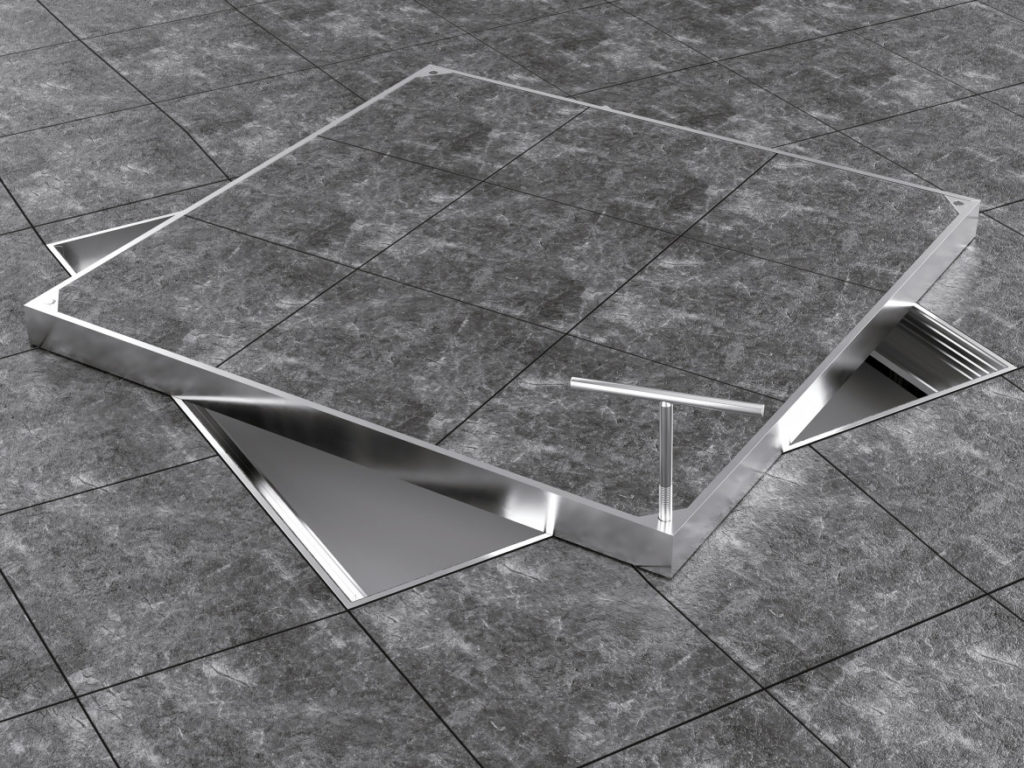

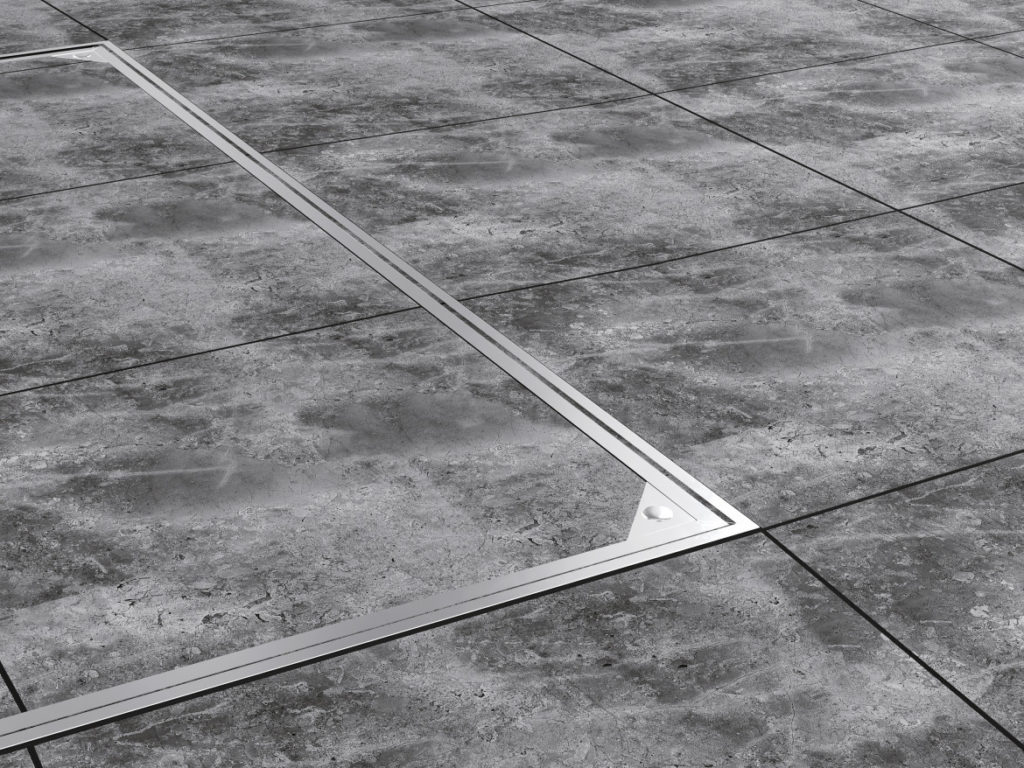

The Elite Range of Aluminium Recessed Access Covers
Aluminium Recessed Access Covers and Frames
Enlarge
Product Details
Areas with vehicular traffic up to 10 Tonnes (GLVW) or 2.5 Tonnes (SMWL) i.e. car parks and service areas, pedestrian areas where occasional vehicular access is likely.
AAA
10 Tonnes
AAA
10 Tonnes
- Our finest range of recessed covers for show rooms and other areas where the best aesthetic finish is required
- Frame & cover are made of extruded aluminium profile
- Easy to lift with threaded lifting keys
- Suitable for tiles
- Suitable for internal & external use
- The cover is odour resistant under normal atmospheric conditions
- Cover is screw tight
- The cover has a double high-grade EPDM seal & there is a T Rubber seal on the side of the frame making this triple sealed
- The bottom Plate is made of a 3mm galvanized steel plate
Available Sizes
| Product code | Clear Opening (mm) | Over Frame (mm) | Frame Depth (mm) | Internal Tray Depth (mm) | Unit |
MHC-EL2-30/30 |
300 x 300 | 390 x 390 | 60 | 40 | single |
MHC-EL2-45/45 |
450 x 450 | 540 x 540 | 60 | 40 | single |
MHC-EL2-60/45 |
600 x 450 | 690 x 540 | 60 | 40 | single |
MHC-EL2-60/60 |
600 x 600 | 690 x 690 | 60 | 40 | single |
MHC-EL2-75/60 |
750 x 600 | 840 x 690 | 60 | 40 | single |
MHC-EL2-75/75 |
750 x 750 | 840 x 840 | 60 | 40 | single |
MHC-EL2-90/60 |
900 x 600 | 990 x 690 | 60 | 40 | single |
MHC-EL2-90/75 |
900 x 750 | 990 x 840 | 60 | 40 | single |
MHC-EL2-90/90 |
900 x 900 | 990 x 990 | 60 | 40 | single |
MHC-EL2-1000/1000 |
1000 x 1000 | 1090 x 1090 | 60 | 40 | twin |
MHC-EL2-1200/600 |
1200 x 600 | 1290 x 690 | 60 | 40 | twin |
Available Sizes
MHC-EL2-30/30
| Clear Opening (mm) | 300 x 300 |
| Over Frame (mm) | 390 x 390 |
| Frame Depth (mm) | 60 |
| Internal Tray Depth (mm) | 40 |
| Unit | single |
MHC-EL2-45/45
| Clear Opening (mm) | 450 x 450 |
| Over Frame (mm) | 540 x 540 |
| Frame Depth (mm) | 60 |
| Internal Tray Depth (mm) | 40 |
| Unit | single |
MHC-EL2-60/45
| Clear Opening (mm) | 600 x 450 |
| Over Frame (mm) | 690 x 540 |
| Frame Depth (mm) | 60 |
| Internal Tray Depth (mm) | 40 |
| Unit | single |
MHC-EL2-60/60
| Clear Opening (mm) | 600 x 600 |
| Over Frame (mm) | 690 x 690 |
| Frame Depth (mm) | 60 |
| Internal Tray Depth (mm) | 40 |
| Unit | single |
MHC-EL2-75/60
| Clear Opening (mm) | 750 x 600 |
| Over Frame (mm) | 840 x 690 |
| Frame Depth (mm) | 60 |
| Internal Tray Depth (mm) | 40 |
| Unit | single |
MHC-EL2-75/75
| Clear Opening (mm) | 750 x 750 |
| Over Frame (mm) | 840 x 840 |
| Frame Depth (mm) | 60 |
| Internal Tray Depth (mm) | 40 |
| Unit | single |
MHC-EL2-90/60
| Clear Opening (mm) | 900 x 600 |
| Over Frame (mm) | 990 x 690 |
| Frame Depth (mm) | 60 |
| Internal Tray Depth (mm) | 40 |
| Unit | single |
MHC-EL2-90/75
| Clear Opening (mm) | 900 x 750 |
| Over Frame (mm) | 990 x 840 |
| Frame Depth (mm) | 60 |
| Internal Tray Depth (mm) | 40 |
| Unit | single |
MHC-EL2-90/90
| Clear Opening (mm) | 900 x 900 |
| Over Frame (mm) | 990 x 990 |
| Frame Depth (mm) | 60 |
| Internal Tray Depth (mm) | 40 |
| Unit | single |
MHC-EL2-1000/1000
| Clear Opening (mm) | 1000 x 1000 |
| Over Frame (mm) | 1090 x 1090 |
| Frame Depth (mm) | 60 |
| Internal Tray Depth (mm) | 40 |
| Unit | twin |
MHC-EL2-1200/600
| Clear Opening (mm) | 1200 x 600 |
| Over Frame (mm) | 1290 x 690 |
| Frame Depth (mm) | 60 |
| Internal Tray Depth (mm) | 40 |
| Unit | twin |
